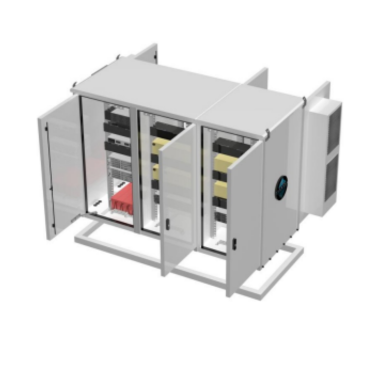

3ICE Cabinets
Built-in the USA, the 3ICE Cabinets are certified under the Build America, Buy America initiative. These 3 Bay outdoor cabinets are designed by Iceberg Climatized Cabinets. They provide strong, secure, and efficient housing for telecom and power equipment. Each cabinet is made to perform reliably in harsh outdoor environments. The cabinet offers excellent protection against both mechanical damage and environmental factors.
Overview
The 3ICE Cabinet is a compact, integrated outdoor solution. It is built using either steel or aluminum. The cabinet features an IP55-rated seal for excellent weather resistance. It helps keep out dust and water. It is also built to prevent access by unauthorized personnel. The design allows for quick installation and long-lasting performance. Different cabinet sizes are available to meet various site requirements.
Key Features
1. Versatile Equipment Support
●The cabinet supports network equipment, microwave equipment. It also supports AC and DC systems and radio modules with breaker rail.
● It allows the installation of routers, switches, patch panels, BBUs, RRUs, and fiber equipment.
2. Size Options
● Heights: 40", 50", 60", 72"
● Depths: 32", 36", 42", 46"
● Width: 102"
● Colors: Grey or Off-White
RU: 21 - 38
3. Power Supply and Battery Backup
● Works with customer-specified AC or DC systems.
● Compatible brands include Eltek, Alpha, and NewMar.
● Power setups follow NEC requirements.
Battery backup capacity:
● 1ICE: 420Ah
● 2ICE: 840Ah
● 3ICE: 1,260Ah (each bay uses less than 10 RU)
4. Climate Control by Dantherm
● HVAC units are available in DC or AC.
● Cooling ranges from 2,000 to 12,000 BTU.
● Typically comes with 2 HVAC units mounted on rear doors.
● Heat exchanger fans are also available.
● These help with ventilation and airflow.
5. Access and Security
● Fitted with a 3-point locking system.
● A padlock hole is included for extra security.
● Doors are secured with a right-angle latch.
● Turning the handle clockwise locks the cabinet.
6. Breaker and Power Panel
● The external breaker panel is installed as per the customer's request.
● Available brands include Square D, Eaton, GE, and Siemens.
● Amperage options range from 100A to 400A.
● An optional surge arrester protects against voltage spikes.
● The standard generator plug is 50A
● Other plug types can be installed if requested.
7. Grounding
● 18 position master ground buss bar.
● Each bay has a grounding busbar at its base.
● Busbars can also be placed in other locations if needed.
● All equipment grounding wires connect to base ground bars ran to MSB.
8. Cable and Fiber Entry
Entry points can be customized.
Standard entries include:
● 1ICE: (2) 4” + (6) 1.75” ports at the base.
● 2ICE: (4) 4” + (12) 1.75” ports at the base.
● 3ICE: (4) 4” + (12) 1.75” ports at the base.
Supports easy fiber and power cable management.
9. Plinth Base
Cabinets come with plinths when required.
This helps support and stabilize the installation.
Applications
The 3ICE Cabinet supports multiple technologies.
● These include 3G, 4G, and 5G radio networks.
● It is also used for fiber optic systems.
● It can house backup batteries and power supplies.
● Perfect for outdoor telecom, data, or utility systems.
Support and Contact
● Tech Support Hours: Monday to Friday, 8:00 AM – 5:00 PM CST
● Emergency Support: (737) 343-1197
● Main Line: (319) 845-6083
● Email: nlee@telcoden.com
When contacting support, please have:
● Part Number
● Date of Purchase
● Date of Installation
The 3ICE Cabinet is a tough and flexible solution. It protects sensitive equipment and supports complex systems. It's built for reliability, security, and long-term use in any outdoor environment.
Frequently Asked Questions
1. What makes the 3ICE Cabinet suitable for outdoor telecom installations?
The 3ICE Cabinet is specifically designed for harsh outdoor environments. It features an IP55-rated seal to resist dust and water, a robust structure for mechanical protection, and climate control options by Dantherm. Its secure locking system and customizable cable entry points ensure safe and organized equipment housing for telecom, data, and utility systems.
2. What power systems are compatible with the 3ICE Cabinet?
The 3ICE Cabinet supports both AC and DC power systems. It is compatible with brands like Eltek, Alpha, and NewMar and follows NEC standards. It includes breaker rails and panels from trusted manufacturers like Eaton and GE, with amperage options from 100A to 400A. Battery backup options range from 420Ah to 1,260Ah, depending on cabinet size.
3. How does the 3ICE Cabinet manage internal temperatures?
The cabinet uses Dantherm HVAC systems to maintain optimal internal temperatures. Cooling options range from 2,000 to 12,000 BTU, and each cabinet bay can hold one HVAC unit, with the option to add a second on the back door. It also includes heat exchanger fans for improved ventilation and efficient airflow management.capacities ranging from 2,000 to 12,000 BTU.
4. What size and configuration options are available for the 3ICE Cabinet?
The 3ICE Cabinet comes in various sizes to suit different installation needs. Heights range from 40" to 72", depths from 32" to 46", and all models have a width of 102". Customers can choose from grey or off-white finishes. Cable and fiber entry ports and breaker panels can also be customized to project specifications.The 3ICE Cabinet comes in various sizes to suit different installation needs. Heights range from 40" to 72", depths from 32" to 46", and all models have a width of 102". Customers can choose from grey or off-white finishes. Cable and fiber entry ports and breaker panels can also be customized to project specifications.
